Detailed Description

Generates a graph following the Barabási–Albert model.

Such a graph is generated by first picking a number of vertices. For each new vertex n' added to the graph, an edge is added to an existing node n with probability d_n/D, where d_n is the current degree of n and D is the sum of the degrees of all pre-existing vertices.

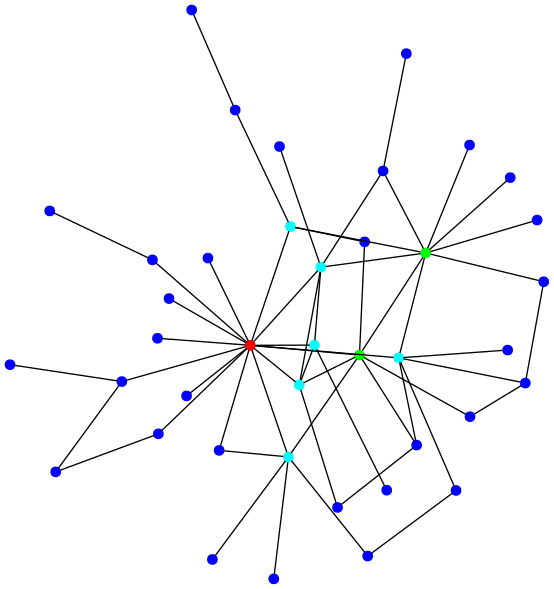

The resulting graph has the property of being scale-free: it contains few vertices with high degree, and many vertices with low degree. An example of a graph generated by this program is the following:

Graph

In the source code, this graph is merely printed to the console in the DOT format of the Graphviz graph rendering tool.

Author: Sylvain Hallé

Definition at line 54 of file BarabasiAlbert.java.

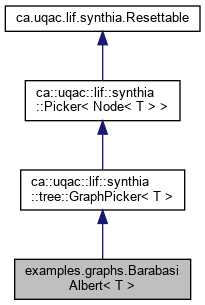

Inheritance diagram for examples.graphs.BarabasiAlbert< T >:

[legend]

Public Member Functions
	BarabasiAlbert (Picker< Node< T >> node_picker, Picker< Integer > size, Reactive< Float, Boolean > coin)

Node< T >	pick ()
	Picks an object. More...

Picker< Node< T > >	duplicate (boolean with_state)
	Creates a copy of the picker. More...

Public Member Functions inherited from ca.uqac.lif.synthia.tree.GraphPicker< T >
	GraphPicker (Picker< Node< T >> node_picker, Picker< Integer > size)

Set< Node< T > >	getNodes ()
	Gets the set of nodes in the last graph generated. More...

int	getMaxDegree ()
	Gets the maximum out degree in a set of nodes in the last graph generated. More...

void	reset ()
	Puts the picker back into its initial state. More...

Static Public Member Functions
static void	main (String[] args)

Protected Attributes
Reactive< Float, Boolean >	m_coin

Protected Attributes inherited from ca.uqac.lif.synthia.tree.GraphPicker< T >
Picker< Node< T > >	m_nodePicker

Picker< Integer >	m_size

Set< Node< T > >	m_nodes

Additional Inherited Members
Protected Member Functions inherited from ca.uqac.lif.synthia.tree.GraphPicker< T >
void	connect (Node< T > n1, Node< T > n2)
	Connects two nodes in a graph. More...

Constructor & Destructor Documentation

◆ BarabasiAlbert()

examples.graphs.BarabasiAlbert< T >.BarabasiAlbert	(	Picker< Node< T >>	node_picker,
		Picker< Integer >	size,
		Reactive< Float, Boolean >	coin
	)

Definition at line 73 of file BarabasiAlbert.java.

Member Function Documentation

◆ duplicate()

Picker<Node<T> > examples.graphs.BarabasiAlbert< T >.duplicate ( boolean with_state )

Creates a copy of the picker.

Parameters

with_state If set to false, the returned copy is set to the class' initial state (i.e. same thing as calling the picker's constructor). If set to true, the returned copy is put into the same internal state as the object it is copied from.

Returns: The copy of the picker

Implements ca.uqac.lif.synthia.Picker< T >.

Definition at line 112 of file BarabasiAlbert.java.

◆ main()

static void examples.graphs.BarabasiAlbert< T >.main ( String[] args )

static

Definition at line 56 of file BarabasiAlbert.java.

◆ pick()

Node<T> examples.graphs.BarabasiAlbert< T >.pick ( )

Picks an object.

Typically, this method is expected to return non-null objects; a null return value is used to signal that no more objects will be produced. That is, once this method returns null, it should normally return null on all subsequent calls.

Returns: The object

Implements ca.uqac.lif.synthia.Picker< T >.

Definition at line 80 of file BarabasiAlbert.java.

Member Data Documentation

◆ m_coin

Reactive<Float,Boolean> examples.graphs.BarabasiAlbert< T >.m_coin

protected

Definition at line 71 of file BarabasiAlbert.java.

The documentation for this class was generated from the following file:

Source/Examples/src/examples/graphs/BarabasiAlbert.java
